Mean Well SPV-1500-12

SKU
SPV-1500-12
Image at top has 5 yellow stars, below it is the red Mean Well logo. Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

$63.65
  • Buy 25 for $55.90 each and save 12%

Product images shown are for illustration purposes only and may not be an exact representation of the product.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

MEAN WELL AC-DC Industrial Enclosed 1500 Watts 12VDC out

More Details
The MEAN WELL SPV-1500-12 is a industrial, single output, AC-DC power supply. The nominal output is rated for 12 Volts DC at 125 amps (1500 watts). This power converter accepts an AC input range of 88~264 and has an efficiency rating of 87%. The SPV-1500-12 is an Enclosed package type with an operating temperature range of -20C to +70C. This AC-DC converter has on board fan and its dimensions are 278 (L) x 127 (W) x 83.5 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through email, online chat or call us (408-733-9090).
Loading...

MEAN WELL SPV-1500-12

AC-DC Industrial Enclosed Single output power supplyOutput: 12 volts, 125 amps, 1500 wattsUniversal AC input / Full rangeBuilt-in active PFC function, PF>0.94

View MoreProtections: Short circuit / Overload / Over voltage / Over temperatureCooling by free air convectionOutput voltage programmable from 20~110% by 1~5.5VDC external control signalBuilt-in remote ON-OFF controlFixed switching frequency at 100KHz3 year warranty

For specific information on the MEAN WELL SPV-1500-12 please view the datasheet

Other models in the SPV-1500 series: 24 volt-SPV-1500-24; 48 volt-SPV-1500-48

More Information
Price$63.65
Weight (lbs)7.056000
ManufacturerMean Well
Package TypeEnclosed
IndustryIndustrial
AC InputUniversal Input - Full Range, 88~264
Voltage - Output 112.0
Power Output (W)1500
CoolingOn Board Fan
Product SeriesSPV-1500
SPV-1500_spec (354.16 kB)
MEAN WELL AC-DC power supply RSP-1600-12
RSP-1600-12
$465.50

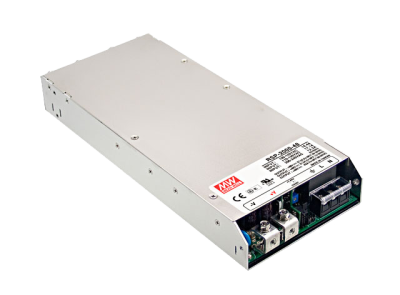

MEAN WELL AC-DC power supply RSP-2000-12
