Mean Well SE-600-48 (600W 48V)

SKU
SE-600-48
Image at top has 5 yellow stars, below it is the red Mean Well logo. Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

$95.72
  • Buy 5 for $94.95 each and save 1%
  • Buy 10 for $94.70 each and save 1%
  • Buy 20 for $94.08 each and save 2%

Product images shown are for illustration purposes only and may not be an exact representation of the product.

MEAN WELL Single Output, Industrial AC-DC Converter, Enclosed Package, 600 Watts, Input Voltage Range: 115/230 manual switchVAC, Output Voltage: 48VDC, Output Current: 12.5A

More Details
The MEAN WELL SE-600-48 is a industrial, single output, AC-DC power supply. The nominal output is 48 Volts DC at 12.5 amps, with a maximum power output of 600 watts. This power converter accepts an AC input voltage of 115/230 manual switch and has an efficiency rating of 88%. The SE-600-48 has an Enclosed package type with an operating temperature range of -20C to +60C. This AC-DC converter has an on board fan and its dimensions are 247 (L) x 127 (W) x 63.5 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).

MEAN WELL SE-600-48 Features

AC-DC Industrial Enclosed Single output power supplyOutput: 48 volts, 12.5 amps, 600 wattsConnection Type: AC input active surge current limitingAC input range selected by switch

View MoreProtections: Short circuit / Overload / Over voltage / Over temperatureForced air cooling by built-in DC fanHigh power density 4.9w/in3Built-in remote sense functionUL approvedLow cost2 year warranty

For specific information on the MEAN WELL SE-600-48 please view the datasheet

Other models in the SE-600 series: 5 volt-SE-600-5; 12 volt-SE-600-12; 15 volt-SE-600-15; 24 volt-SE-600-24; 27 volt-SE-600-27; 36 volt-SE-600-36

More Information
Price$95.72
ManufacturerMean Well
ApplicationIndustrial (ITE)
Package TypeEnclosed
AC Input (VAC)115/230 manual switch
Number Outputs1
Voltage - Output 1 (VDC)48
Output Current12.5A
Power Output (W)600
Height2.50in (63.50mm)
Length9.72in (247.00mm)
Width5.00in (127.00mm)
CoolingOn Board Fan
Operating Temperature-20C ~ 60C (with derating)
Weight (lbs)4.630500
Product SeriesSE-600
SE-600_spec (958.28 kB)

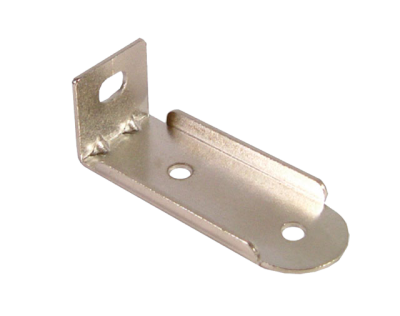

Accessories
