IPD REL-70-1004 (70W 12V)

SKU
REL-70-1004
$87.44
  • Buy 5 for $85.68 each and save 2%
  • Buy 10 for $83.44 each and save 5%
  • Buy 20 for $81.83 each and save 6%

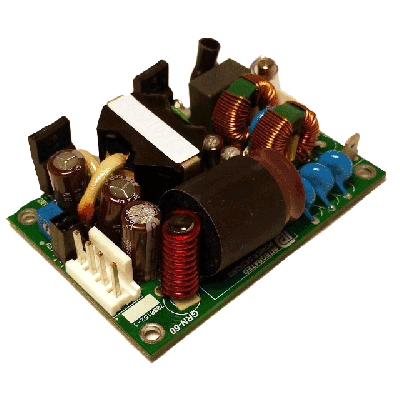

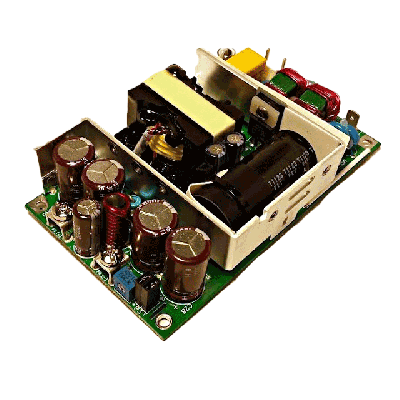

Product images shown are for illustration purposes only and may not be an exact representation of the product.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

pdf download  REL-70 Datasheet

IPD Single Output AC-DC Converter, Open Frame Package, 70 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 12VDC, Output Current: 5.8A

More Details
The Integrated Power Designs REL-70-1004 is a single output, AC-DC power supply. The nominal output is rated for 12 volts at 5.8 amps (70 watts). It accepts an AC input range of 85~264 and has an efficiency rating of 0.87%. The REL-70-1004 is an Open Frame package type with an operating temperature range of 0C to +70C. This AC-DC converter has Medical and Industrial (ITE) safety certifications, no on board fan and its dimensions are 4.5 (L) x 2.5 (W) x 1.22 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).
Loading...

Integrated Power Designs REL-70-1004 Features

TARIFF FREE- IPD power supplies are proudly Made in the U.S.A.AC-DC, Medical and Industrial (ITE) safeties, open frame type power supplySingle Output: 12 volts, 5.8 amps, 70 wattsCompact 2.5 x 4.5" x 1.2" Size2 Year Warranty

View MoreUniversal 85-264V InputHigh Efficiency0-70°C Operating TemperatureIEC 60601-1 3rd ed. Medical Cert.IEC 62368-1 2nd CertificationIEC 60601-1-2 4th ed. EMCClass B Emissions per EN55011/32RoHS CompliantOptional Chassis/Cover (search same part number with added suffix "-CH" for chassis and "-CHCO" for chassis/ cover)

For specific information on the IPD REL-70-1004 please view the datasheet

Other single output models in the REL-70 series: 2.5 volt-REL-70-1001; 3.3 volt-REL-70-1002; 5 volt-REL-70-1003; 15 volt-REL-70-1005; 24 volt-REL-70-1006; 28 volt-REL-70-1007; 48 volt-REL-70-1008

Specifications
Price$87.44
ManufacturerIPD
ApplicationIndustrial (ITE), Medical
Package TypeOpen Frame
AC Input (VAC)85~264
Number Outputs1
Voltage - Output 1 (VDC)12
Output Current5.8A
Power Output (W)70
Length4.50in (113.85mm)
Width2.50in (63.25mm)
Height1.22in (30.87mm)
CoolingNo On Board Fan
Operating Temperature0C ~ 70C (with derating)
Efficiency87%
Weight (lbs)0.600000
Country of OriginU.S.A.
Product SeriesREL-70
