IPD NXT-325-1002-CHCO (215W 3.3V)

SKU
NXT-325-1002-CHCO
$253.71
  • Buy 5 for $248.60 each and save 2%
  • Buy 10 for $242.10 each and save 5%
  • Buy 20 for $237.45 each and save 6%

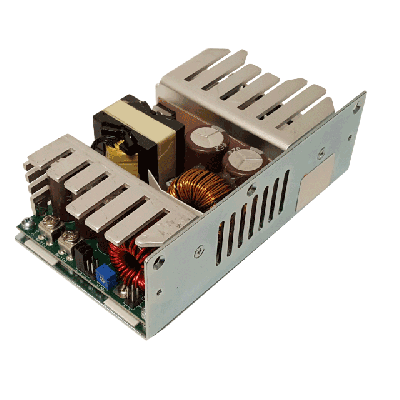

Product images shown are for illustration purposes only and may not be an exact representation of the product.

Add to Wish List Add to Compare
Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure Image emphasizing payment and purchase on this website is secure. Image shows a green shield with a lock, with words saying 100% Secure

IPD Single Output AC-DC Converter, Enclosed Package, 215 Watts, Input Voltage Range: 85~264 VAC, Output Voltage: 3.3VDC, Output Current: 65A

More Details
The Integrated Power Designs NXT-325-1002-CHCO is a single output, AC-DC power supply. The nominal output is rated for 3.3 volts DC at 65 amps (215 watts). This power converter accepts an AC input range of 85~264 and has an efficiency rating of 0.87%. The NXT-325-1002-CHCO is an Enclosed package type with an operating temperature range of 0C to +70C. This AC-DC converter has , no on board fan and its dimensions are 6.2 (L) x 4 (W) x 1.75 (H) inches. If you have questions about this IPD power supply please contact us through our web chat (lower right hand corner) or call us (408-733-9090).
Loading...

Integrated Power Designs NXT-325-1002-CHCO Features

TARIFF Free- IPD power supplies are proudly Made in the U.S.Includes a chassis and cover as called out by the -CHCO suffix in the part numberAC-DC, Medical and Industrial (ITE) safeties, enclosed type power supplySingle Output: 3.3 volts, 65 amps, 215 wattsCompact Size3 Year Warranty

View MoreUniversal 85-264V InputSingle High Efficiency OutputPower Fail Warning0-70°C Operating TemperatureRoHS CompliantIEC 60601-1 3rd ed. Medical Cert.IEC 62368-1 2nd ed. CertificationIEC 60601-1-2 4th ed. EMCClass B Emissions per EN55011/32Optional Single Wire Load Sharing (ask a Bravo Power Expert)Optional Remote Inhibit/Enable (ask a Bravo Power Expert)

For specific information on the IPD NXT-325-1002-CHCO please view the datasheet

Other single output models in the NXT-325 series: 2.5 volt-NXT-325-1001-CHCO; 5 volt-NXT-325-1003-CHCO; 12 volt-NXT-325-1004-CHCO; 15 volt-NXT-325-1005-CHCO; 24 volt-NXT-325-1006-CHCO; 28 volt-NXT-325-1007-CHCO; 48 volt-NXT-325-1008-CHCO

More Information
Price$253.71
Country of OriginU.S.A.
Weight (lbs)2.150000
ManufacturerIPD
Package TypeEnclosed
IndustryMedical
AC Input (VAC)85~264
Voltage - Output 1 (VDC)3.3
Power Output (W)215
Height1.75in (44.28mm)
Length6.20in (156.86mm)
Width4.00in (101.20mm)
CoolingNo On Board Fan
Number Outputs1
Operating Temperature0C ~ 70C (with derating)
Product SeriesNXT-325
