Mean Well HEP-150-54A (151W 54.0V)

SKU
HEP-150-54A
Image at top has 5 yellow stars, below it is the red Mean Well logo. Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

$82.70
  • Buy 5 for $78.70 each and save 5%
  • Buy 10 for $75.30 each and save 9%
  • Buy 20 for $73.10 each and save 12%

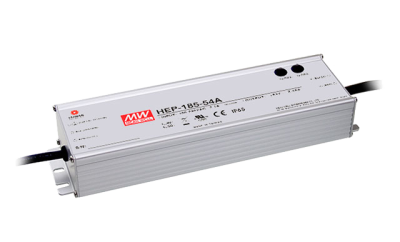

Product images shown are for illustration purposes only and may not be an exact representation of the product.

MEAN WELL Single Output, Industrial AC-DC Converter, Harsh Environment Package, 151.2 Watts, Input Voltage Range: 90~305VAC, Output Voltage: 54VDC, Output Current: 2.80A

More Details
The MEAN WELL HEP-150-54A is a industrial, single output, AC-DC power supply. The nominal output is 54 volts DC at 2.8 amps, with a maximum power output of 151 watts. This power converter accepts an AC input voltage of 90~305 and has an efficiency rating of 94%. The HEP-150-54A has a Harsh Environment package type with an operating temperature range of -55C to +70C. This AC-DC converter has no on board fan and its dimensions are 228 (L) x 68 (W) x 38.8 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).

MEAN WELL HEP-150-54A Features

AC-DC Industrial Harsh Environment Single output power supplyOutput: 54 volts, 2.8 amps, 151 wattsConnection Type: Universal AC input / Full range (up to 305VAC)Built-in active PFC function

View MoreHigh efficiency up to 93%Fanless design, cooling by free air convection-55~+70°C wide operating rangeAluminum case and filling with heat-conducted siliconeIP65 design, optional IP68 rated model availableMeet 6KV surge immunity levelWithstand 10G vibration testProtections: Short circuit / Overload / Over voltage / Over temperatureOperating altitude up to 5000 meters6 year warranty

For specific information on the MEAN WELL HEP-150-54A please view the datasheet

Other models in the HEP-150 (A-Type) series: 12 volt-HEP-150-12A; 15 volt-HEP-150-15A; 24 volt-HEP-150-24A; 36 volt-HEP-150-36A; 48 volt-HEP-150-48A

More Information
Price$82.70
Weight (lbs)2.535750
ManufacturerMean Well
Package TypeHarsh Environment
IndustryIndustrial
ApplicationIndustrial (ITE)
AC Input (VAC)90~305
Voltage - Output 1 (VDC)54.0
Output Current2.80A
Power Output (W)151
Height1.53in (38.80mm)
Length8.98in (228.00mm)
Width2.68in (68.00mm)
CoolingNo On Board Fan
Number Outputs1
Operating Temperature-55C ~ 70C (with derating)
Product SeriesHEP-150 (A-Type)
