Mean Well GE18I05-P1J (12W 5.0V)

SKU
GE18I05-P1J
Image at top has 5 yellow stars, below it is the red Mean Well logo. Image at top has 5 yellow stars, below it is the red Mean Well logo.

  Authorized MEAN WELL

  Stocking Distributor

$15.58
  • Buy 5 for $14.84 each and save 5%
  • Buy 10 for $14.19 each and save 9%
  • Buy 20 for $13.78 each and save 12%

Product images shown are for illustration purposes only and may not be an exact representation of the product.

MEAN WELL Single Output, Industrial AC-DC Converter, External-Wall Mount Package, 12 Watts, Input Voltage Range: 90~264VAC, Output Voltage: 5VDC, Output Current: 2.40A, Connection: barrel plug - 2.1 x 5.5 x 11mm

More Details
The MEAN WELL GE18I05-P1J is a industrial, single output, AC-DC power supply. The nominal output is 5 volts DC at 2.4 amps, with a maximum power output of 12 watts. This power converter accepts an AC input voltage of 90~264 and has an efficiency rating of 81%. The GE18I05-P1J has an External or Adapter package type with an operating temperature range of -10C to +50C. This AC-DC converter has no on board fan and its dimensions are 81 (L) x 43 (W) x 40.5 (H) mm. If you have questions about this MEAN WELL AC-DC power supply please contact us through our web chat or call us (408-733-9090).

MEAN WELL GE18I05-P1J Features

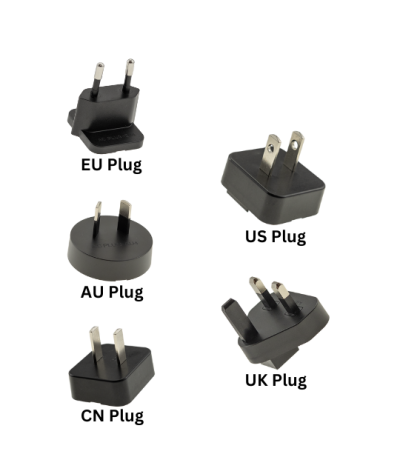

AC-DC Industrial External-Wall Mount Single output power supplyOutput: 5 volts, 2.4 amps, 12 wattsConnection Type: barrel plug - 2.1 x 5.5 x 11mmOutput Connector: barrel plug - 2.1 x 5.5 x 11mm (details in datasheet)Interchangeable AC plugs (plug kit sold separately)Universal AC input / Full range

View MoreNo load power consumption< 0.075WEnergy efficiency Level VIComply with EISA 2007/DoE and EU ErPClass II power (without earth pin)Protections: Short circuit / Overload / Over voltagePass LPSFully enclosed plastic caseLED indicator for power on2 years warranty

For specific information on the MEAN WELL GE18I05-P1J please view the datasheet

Other models in the GE18I series: 7.5 volt-GE18I07-P1J; 9 volt-GE18I09-P1J; 12 volt-GE18I12-P1J; 15 volt-GE18I15-P1J; 18 volt-GE18I18-P1J; 24 volt-GE18I24-P1J; 48 volt-GE18I48-P1J

More Information
Price$15.58
Weight (lbs)0.308700
ManufacturerMean Well
Package TypeExternal-Wall Mount
IndustryIndustrial
ApplicationIndustrial (ITE)
AC Input (VAC)90~264
Voltage - Output 1 (VDC)5
Output Current2.40A
Power Output (W)12
Height1.59in (40.50mm)
Length3.19in (81.00mm)
Width1.69in (43.00mm)
CoolingNo On Board Fan
Number Outputs1
Operating Temperature-10C ~ 50C (with derating)
Product SeriesGE18I
